Bramka o wysokiej prędkości przepustowej
IM.ST601

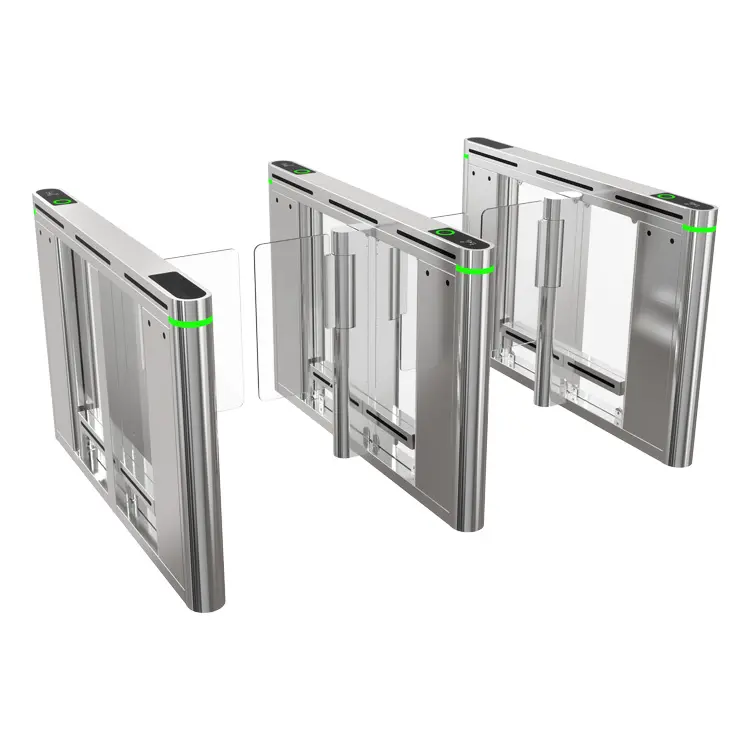

The IM.ST601 is a speed gate that is made of stainless steel and is used in high traffic areas. The 8-point infrared accuracy, high-speed servo-operated access and intelligent anti-tailgating detection make it a reliable and fashionable entrance control system capable of doing a commercial, industrial and city security.
-
Szerokość przejścia:≤1300 mm
-
Prędkość mijania:≤ 45 Ludzie/min
-
Materiał: ICH 304 Stal nierdzewna (1.5Grubość mm)
-
Wymiary:długość 1500* Szerokość 120* Wysokość 1000mm
-
System detekcji:8-Punktowe czujniki podczerwieni (rozszerzalny do 12 Par)
Rozpoznawanie twarzy
Wyświetlacz LED
8 Pary detektorów podczerwieni
QR
High throughput speed turnstile systems offer specific solutions for locations where speed and precision are of the utmost importance. Metro stations, Lotniska, Lobby korporacyjne, stadiums etc make use of such turnstiles to ensure smooth flow of feet without interfering with their security. This system uses a fast-beat authentication, unlike traditional gates that take more than a second to authenticate a person.
The physical blows and common wear and tear are resisted by the gate's high-quality stainless steel construction. Ponadto, its smooth and modern design is in line with the design of high-end social and business areas. The housing has sophisticated sensors, typically eight or more infrared points that detect entry, tailgating and directional offenses.
Funkcje
Smart Features guarantees the entrance of only authorized personnel, and the system notifies security immediately. Dodatkowo, LED visualization signs and optional voice prompts assist users in an intuitive way to reduce the hesitation speed and enhance the flow.
- Access cycle of high pedestrian flow of 1 second.
- Anti-tailgating and safety detection infrared sensors 8+.
- Stainless steel frame having smooth movement wing design.
- RFID, biometryczny, verification of QR codes.
- Voice and LED directions in order to navigate.
- Combined fire alarm reaction to the emergency cases.
- An operation with minimal noise, which is appropriate in the interior lobbies.
- Easy servicing and maintenance due to a modular design.
- Szczegóły produktu
- Specyfikacje
- Techniczna i cechy
- Adaptacji
- Aplikacja
Szczegóły produktu
Materiały i konstrukcje przemysłowe
The high throughput speed turnstile delivers rapid, zabezpieczyć, and intelligent pedestrian flow management for high-traffic environments. Its advanced motion control and multi-point sensing allow for 1-second single-person access, reducing congestion while maintaining reliable verification.
- Materiał: ICH 304 Stal nierdzewna (1.5Grubość mm)
- Odporność na korozję: Zdanie ISO 9227 Test z mgłą solną (2,000 godziny wolne od rdzy)
- Zakres temperatur: -30°C do +70°C (Kompatybilność wewnątrz/na zewnątrz)
- Ocena ochrony: Odporność na wodę i kurz (Stabilna praca w obfitych opadach deszczu i kurzu)
- Projekt: Hairline finish
Specyfikacje
Podstawowe specyfikacje techniczne
| Wymiary | długość 1500* Szerokość 120* Wysokość 1000mm |
| System detekcji | 8-Punktowe czujniki podczerwieni (rozszerzalny do 12 Par) |
| System napędowy | Brushless servo motor (15M+ cykli bez konserwacji) |
| Prędkość mijania | ≤ 45 Ludzie/min |
| Szerokość przejścia | Standardowe 550-900mm (expandable to 1200mm barrier-free access) |
| Napięcie zasilania | AC110~220V±10%,50/60Hz |
| Integracja | Obsługuje interfejsy RFID/rozpoznawania twarzy/skanowania QR /RS485/przekaźnika |
Techniczna i cechy
Funkcje techniczne i bezpieczeństwa
Funkcje bezpieczeństwa:
Anty-pinch w czasie rzeczywistym (0.1automatyczne odbicie przy przeszkodzie)
Alarm włamania (Alerty audiowizualne + Synchronizacja zdalnych platform)
Wykrywanie przeciw tailgatingowi i zamieszkania
Adaptacji
Elastyczność rynku globalnego
- Napięcie: 100-240V szerokiego zakresu wejścia (Globalna kompatybilność siatkowa)
- Wsparcie językowe: 24/7 Służba w Anglii
- Certyfikacja:ŻE,FCC,ISO
Aplikacja
Scenariusze zastosowań
- Enterprise security: industrial parks/data centers
- Commercial spaces: stadiums/conference centers
- Smart cities: libraries/hospitals
