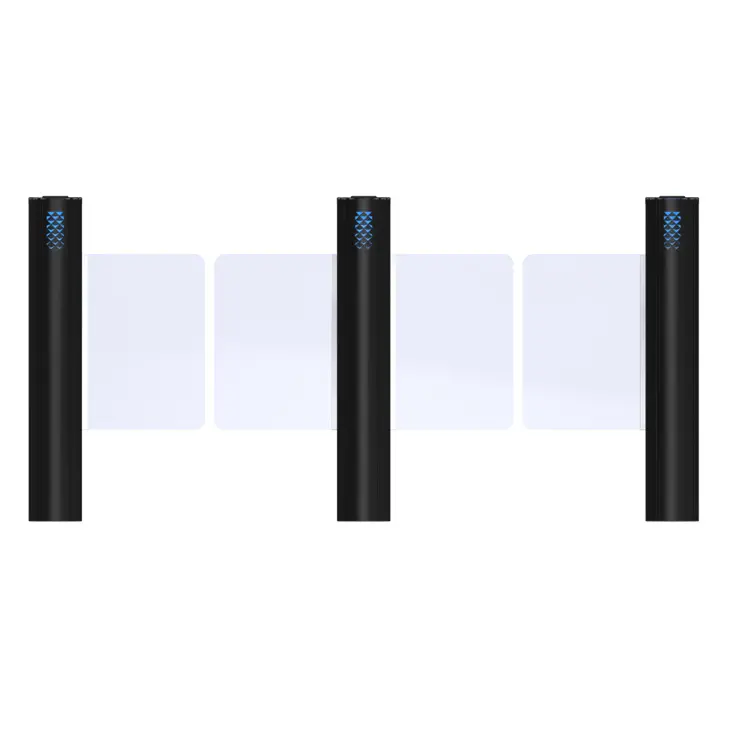

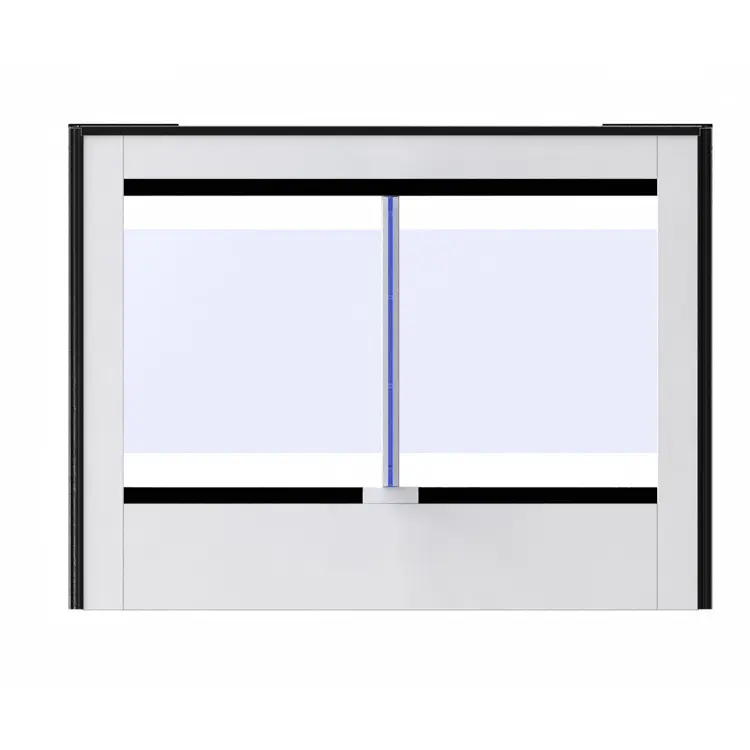

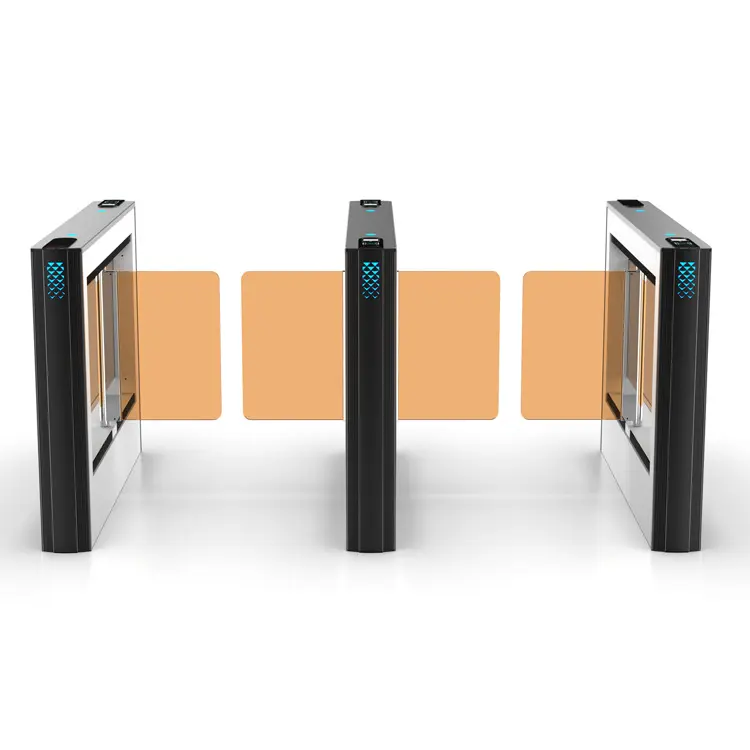

Brama obrotowa z rozpoznawaniem twarzy
IM.XS.02
The IM.XS.02 is made of aluminum alloy paint with developed brushless drive and smart access control. It is stylish and will provide a safe passage at the same time with customizable settings, the perfect fit in a modern campus, gym, office, itd.
-
Materiał: aluminum alloy+SPCC
-
Wymiary:1400*166*1000Mm
-
Prędkość mijania:≤30 persons/minute
-
Szerokość przejścia:600-1100Mm(Customizable)
-
Sensor:Standard 6 Par; optional up to 8 Par
Rozpoznawanie twarzy
Wyświetlacz LED
8 Pary detektorów podczerwieni
QR
Facial recognition swing gate is designed to suit up situations where speed and security of entry are required. It facilitates facial recognition at the milliseconds level using in-built AI algorithms and infrared binoculars. This technology makes it very accurate in the case of low light or partially covered faces. Też, the gate is operated steadily even though the traffic is at its highest point and every user is directed properly by voice instructions and pointers to follow the path. The swing arms are made to be servo-controlled to make them move smoothly and without noise and this improves safety and comfort. The system offers a smooth combination of technology and usability regardless of its use in the office lobbies, Centra transportowe, or research centers.
Funkcje
- Facial recognition with offline capability and at a milliseconds level.
- Quiet fluid movement of swing arms operated by servo motors.
- In-built voice recognition and directional lights.
- Anti-collision chassis made of stainless steel.
- Supports wide-access or dual-lane.
- Remote access control system compatible with visitor systems.
- Power failure or fire alarm open on emergency.
- Live monitoring and far-off configuration.
The facial recognition swing gate has flexibility in system connectivity in addition to being a swift answer. Access permissions, audit logs and configuration can be managed remotely through ordinary protocols such as TCP/IP by the operators. The internal modular structure makes it easier to maintain the system as well as cutting down on system downtime.
W dodatku, the logic is entitled to anti-tailgating and anti-reverse detection to ensure that authorized staff only passes through. The gate protects every element of controlled access in conjunction with fire linkage, automatic reset and intrusion alarms.
In the design, it has the advantage of a sleek profile with high quality materials making it aesthetically compatible with the contemporary architectural aesthetic. In brief, facial recognition swing gate is an access solution that is versatile, secure and fits in the smart world.
- Szczegóły produktu
- Specyfikacje
- Techniczna i cechy
- Adaptacji
- Aplikacja
Szczegóły produktu
Materiały i konstrukcje przemysłowe
The facial recognition swing gate combines speed, inteligencja, and refined aesthetics to meet today’s high-tech access control demands. It supports biometric verification, enabling seamless and contactless entry with real-time response. Designed for high-traffic environments such as office buildings, Szkoły, and tech parks, this swing gate improves both efficiency and user experience.
- Cabinet: SPCC foot 1.0mm baked white paint
- Top cover: aluminum alloy oxidation
- Column: aluminum alloy oxidation
- Arm Material: 10MM Acrylic/Aluminum alloy pendulum;
- Odporność na korozję: Zdanie ISO 9227 Test z mgłą solną (2,000 godziny wolne od rdzy)
- Zakres temperatur: -35°C to +75°C (Kompatybilność wewnątrz/na zewnątrz)
- Ocena ochrony: Odporność na wodę i kurz (Stabilna praca w obfitych opadach deszczu i kurzu)
- Projekt:aluminum alloy oxidation
Specyfikacje
Podstawowe specyfikacje techniczne
| Wymiary | 1400*166*1000Mm |
| Sensor | Standard 6 Par; optional up to 10 Par |
| System napędowy | Brushless motor (24~36VDC) |
| Prędkość mijania | ≤30 persons/minute (memory mode can be turned on) |
| Szerokość przejścia | 600-1100Mm(Customizable) |
| Napięcie zasilania | AC220V±10%,50/60Hz |
| Access control | Supports RFID/Face recognition/QR scanning /RS485/Relay interfaces etc. |
| contact | RS232 RS485 |
Techniczna i cechy
Funkcje techniczne i bezpieczeństwa
Funkcje bezpieczeństwa:
Real-time anti-pinch (0.1s automatic rebound upon obstruction)
Intrusion alarm (audio-visual alerts + remote platform sync)
Anti-tailgating and dwelling detection
Alarm function:
with sound and light alarm function.
Access control:
External ports can connect to a variety of biometric devices
Antyinterferencja:
It can prevent the abnormality of the gate caused by external factors such as electromagnetic interference.
Passage mode setting:
Przejście jednokierunkowe, Przejście dwukierunkowe, free passage , itd. can be set through the buttons on the main control panel
Automatic reset:
Default is 10 Sekund, the pass time can be set by switch
Power off and open the gate:
open the gate after power off
Adaptacji
Elastyczność rynku globalnego
- Napięcie: 110-240V szerokiego zakresu wejścia (Globalna kompatybilność siatkowa)
- Wsparcie językowe: 24/7 Służba w Anglii
- Certyfikacja:ŻE,FCC,ISO
Aplikacja
Scenariusze zastosowań
- indoor/outdoor/semi-outdoor pedestrian/bicycle passing places;
- such as: primary and secondary schools/office buildings/hotels/ residential communities/factory parks/hospitals/corporate and public institutions/government auditoriums/GYM, itd
